Ferrari 250 GT

308 GTB 3.5L Engine On Dyno

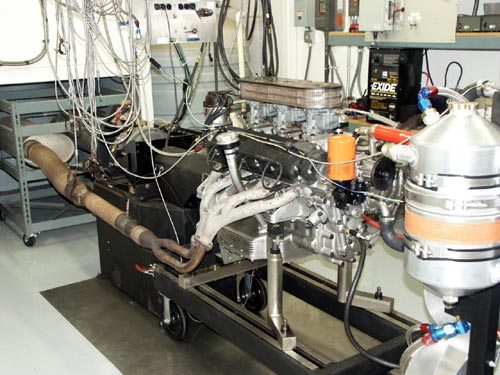

This engine came from a 250 GTE. The owner wanted good power and drive ability. In this heavy car the engine pulls
hard. The cylinder head was ported properly on the intake side and the valve train lightened. Our engine simulation work showed that the stock cam would work well with the modified heads, so we didn’t change it. Compare this engine with the earlier, inside plug 250 engines - huge difference!






Type: 250 GT (128)
Bore: 74mm
Stroke: 58.8mm
Compression Ratio: 10.5:1
Heads: intake side ported, manifolds matched
Cams: stock
Induction: 3 Weber 40 DCL with 30mm venturis
Exhaust: stock 3 into one, port matched, dyno mufflers
Ignition: stock distributors with points/condenser/coil



308/358 GTB QV Stage 2 dyno Graph
